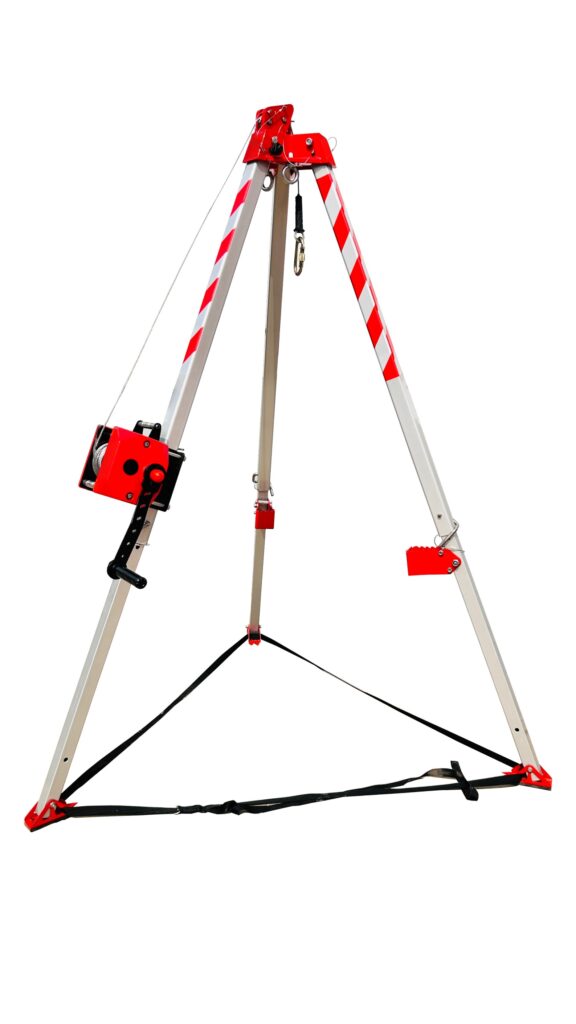

AVIONICS-Single Pulley Tripod

Available in 7ft & 10ft height, the Double Pulley Tripod is equipped with high quality, rugged systems that ensure superior performance.

Made from Aluminium that makes it extremely light weight and portable, easily set- up by just one worker and can be transported from one work area to another.

Ideal for confined space entry and emergency rescue applications. Can be used easily with all AVIONICS Winches and fall arrest devices eg. Blocks.

Consists of pre-installed universal mounting attachments to easily mount the Winch and Retrieval Block when used with JT-RFA-06 Retrieval Bracket.

Inner and outer adjustment can be achieved by sliding telescope legs.

Can be used with all the Winches AVS-WCH-(20), AVS-WCH-801(25), AVS-WCH-801(40), and Retrieval Fall Arrester Blocks JT-RFA-10 and JT-RFA-20R with the help of their universal mounting brackets for Winches and Retrieval Blocks respectively.

2 auxiliary eye bolt for easy overhead anchorage.

COMPLIANCE: EN 795

Length: 7 ft
SPECIFICATION:
Fully adjustable telescopic legs, adjustable height from 1.15m to 2.15m.
Wheelbase(Footprint): 1.5m Diameter.
Weight: 13 kg appx.
Maximum load capacity: 500 kgf.

Length: 10 ft
SPECIFICATION:
Fully adjustable telescopic legs, adjustable height from 1.9m to 2.9m.
Wheelbase(Footprint): 1.8m Diameter.
Weight: 15 kg appx.
Maximum load capacity: 500kgf.
